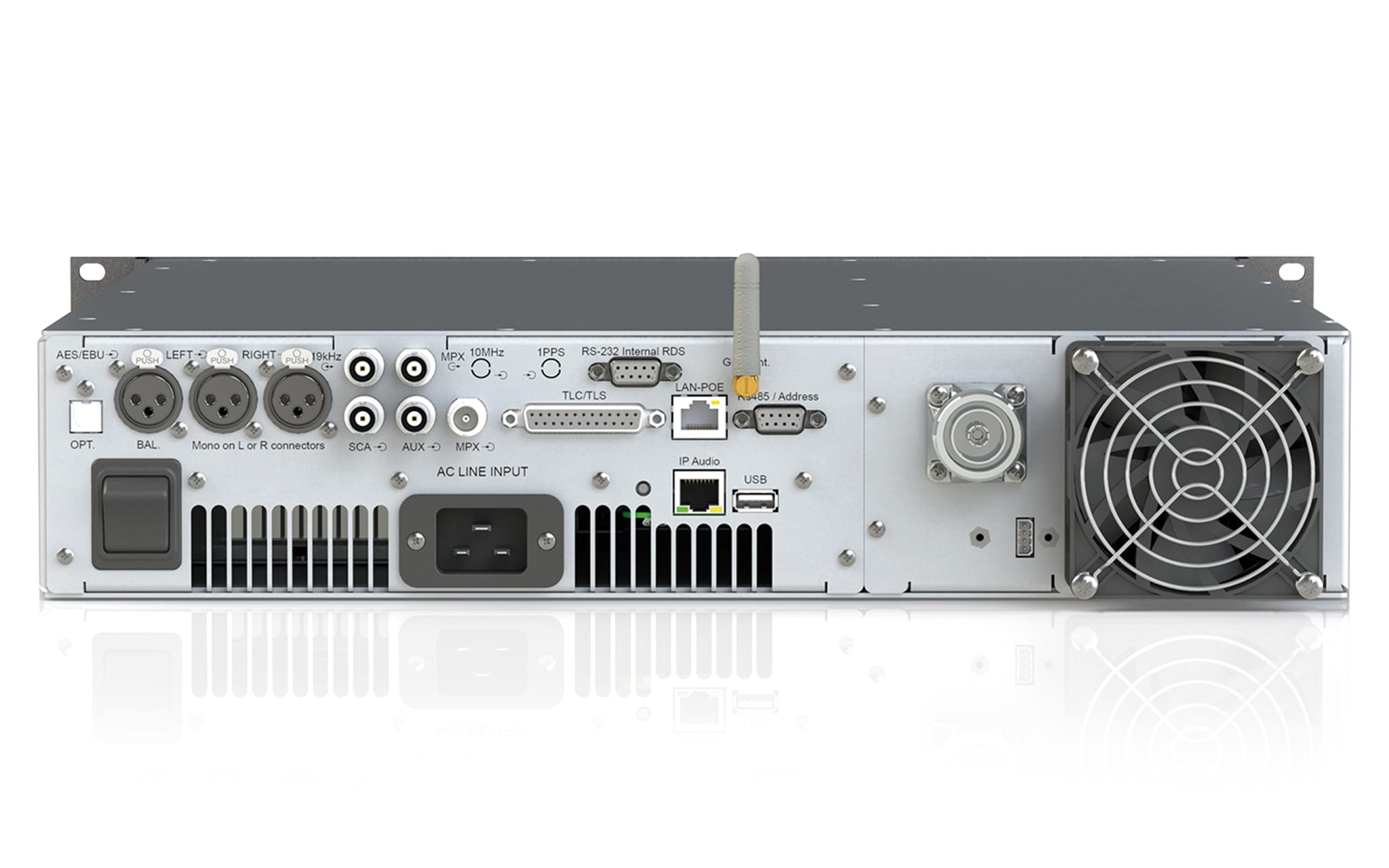

DS2000 FM Transmitters DS2000 FM Transmitters Show Rear

DS2000 FM Transmitters

Available with RF nominal power of 2200W.

The innovative 2.2 kW FM Transmitter is a compact device with only 2RU, showing high-performance engineering features and design. DS2000, winner at IBC 2018, is one of RFE’s best realizations, a technological solution able to guarantee powerful results with small dimensions and costs.

The standard configuration includes different features, while many others are available on request.

Download Data Sheet
FM Transmitters comparative charts

Main features


  • Highest overall efficiency ≥85%
  • Nominal RF power up to 2200W
  • UAQ Ultimate Audio Quality
  • High stereo performance typ. 60 dB
  • Large LCD color display with touch panel
  • AC mains 90-260 VAC extend range with PFC
  • CCIR & FCC compliant
  • Remote Control through mobile APP
  • Web TCP/IP
  • MES™, UAQ™, ICS™
  • Externally removable fan
  • Swap type power supply (GE CP2000/CP3500)
  • Removable dust filter
Our Technology

Maximized Efficiency System

MES system regulates the power devices working point, giving better performance.
Maximized Efficiency System
Find out more >

Ultimate Audio
Quality

UAQ technology improves the audio quality, obtaining innovative sound characteristics.
Ultimate Audio <br> Quality
Find out more >

Intelligent Air Cooling System

ICS system regulates the amount of cooling air used by the transmitter, reducing energy waste.
Intelligent Air Cooling System
Find out more >
High Performance

DS2000 is provided with RFE High Performance technologies, paying great attention to efficiency, sustainability and ease of use.

OPTION: DDS Direct Digital Synthesis, AES/EBU Audio Input, RDS coder, SNMP V2-V3 remote control, OIRT and JPN version, Audio Over IP, GPS Telemetry, SFN Reference, Deep Tropicalization

Evolution Touch
Evolution Touch
Software Energy Saving
Software Energy Saving
Full Audio Interface
Full Audio Interface
Mobile Remote Control
Mobile Remote Control
