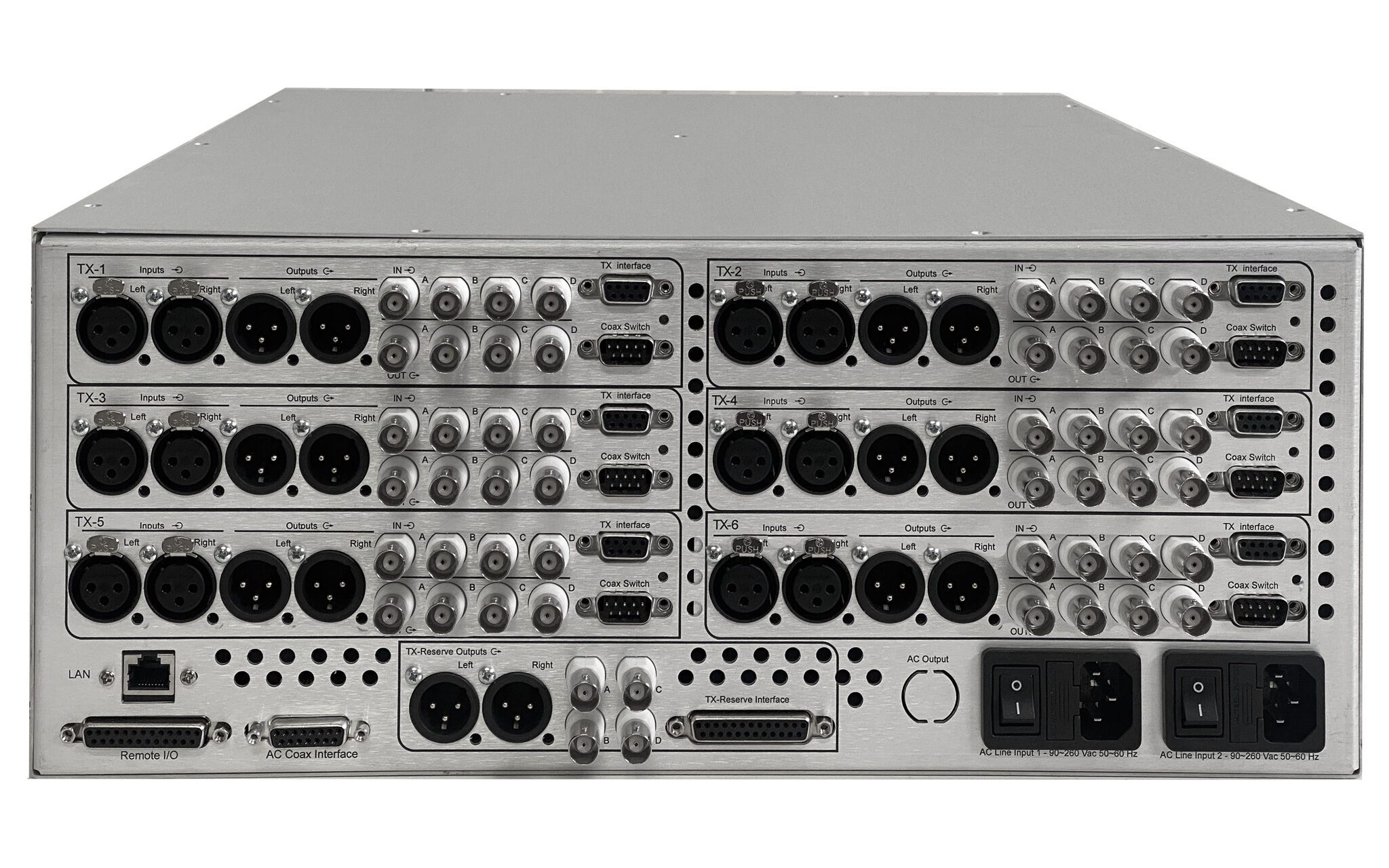

Show Rear
N+1 Automatic Change Over
XC-Series is an Automatic Changeover Unit for N+1 Transmitters system manangement.

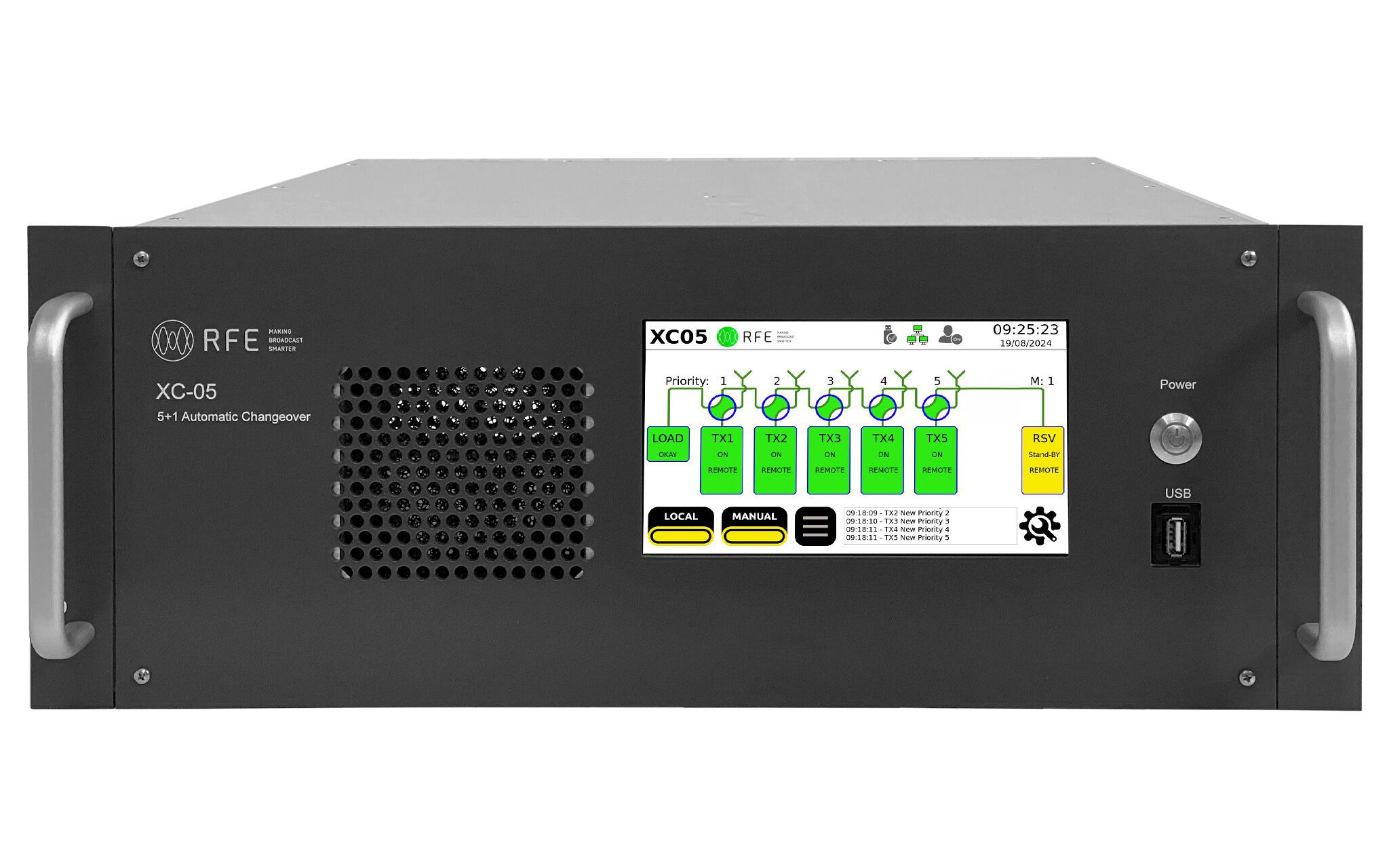

It can be factory configured from 2+1 (XC-02) up to 6+1 (XC-06). An example of 5+1 configuration (XC-05) is shown in the figure above.
The system monitors the transmitters and, in case of fault of one of the Main Transmitters, replaces it with the Reserve one.
Main features
- 7” color display with touch control and user friendly interface
- Handling Linux based
- Compact main page with synoptic of the N+1 system
- Priority management
- Software update via USB-stick and remotely
- Management via SNMPV2 and integrated Web-server
- Micro UPS on-board
- Quick menu for quick settings (QMQS)
