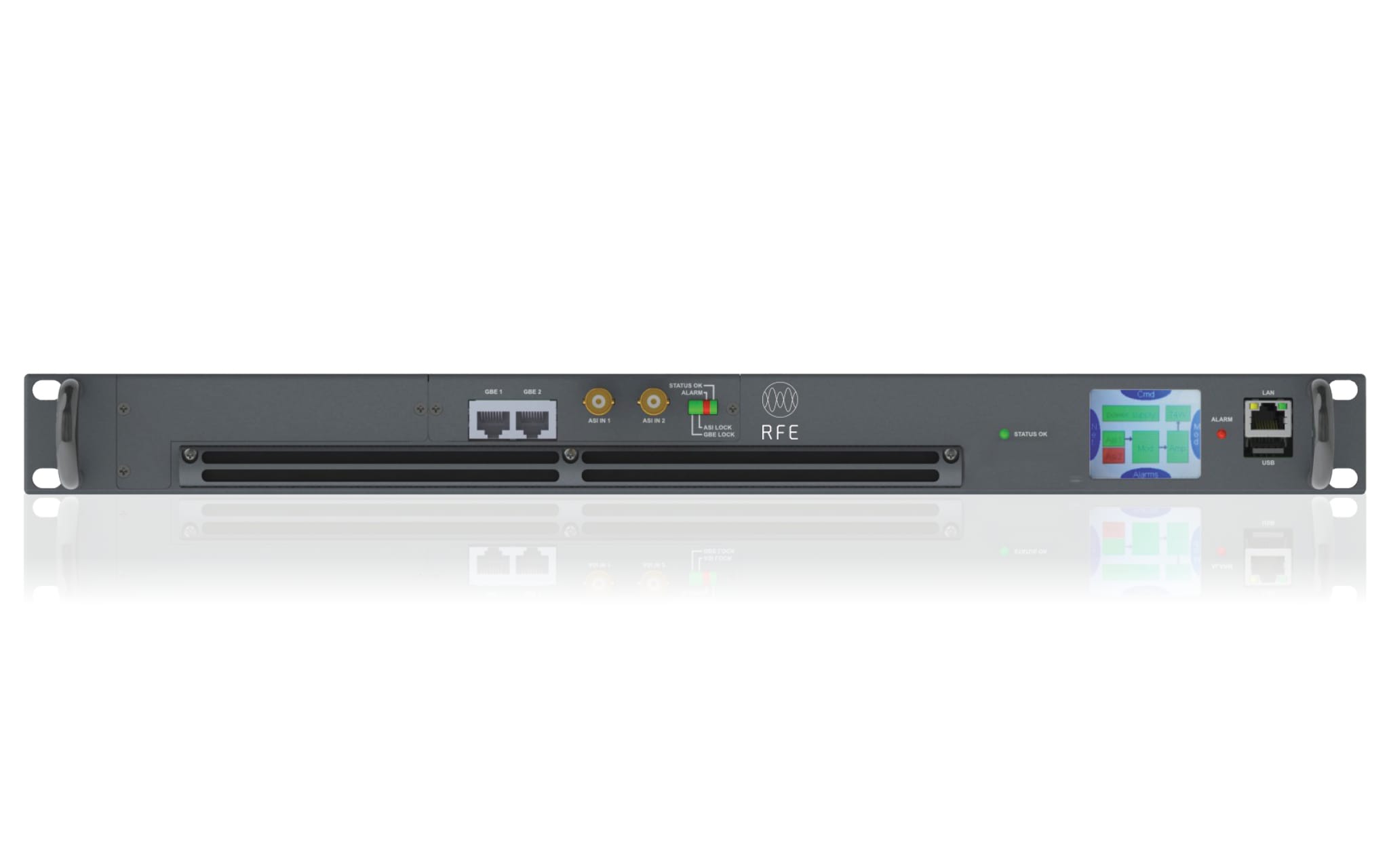

DAB TS Driver

TS Driver is RFE’s most amazing achievement, as it combines a complete DAB Broadcast Transmitter with output power up to 150W rms or 250W p.s. and multiple input interfaces in a single 1U 19” rack chassis. This astonishing engineering is today a unique and unequaled solution in the market.

Supporting DVB-T/H/T2, ISDB-T/Tb, DAB/DAB+/T-DMB, ATSC, PAL and NTSC modulations (dual-cast Analog and Digital is also supported), TS Driver natively offers adaptive pre-correction circuits and built in GPS / GLONASS receiver for accurate synchronization and SFN operations.

Whether you need a Terrestrial or Satellite fed transmitter, re-generative repeater, transposer, or even  regenerative gap-filler, then TS Driver is the required solution as it can be equipped and configured with different input interfaces (Satellite Receiver, ASI, ETI, EDI, Gigabit Ethernet or RF).

Gap-filling operation is made possible by a powerful echo-canceller and, if necessary, by our award winning Spectrum Restorer regenerative gap-filler (EDOCR).

For the South American ISDB-Tb market, TS Driver combines Satellite Receiver, Re-Multiplexer/Layer Combiner/TS to BTS (188 to 204 byte) converter and up to 130W Transmitter in a single 1U box 19” rack!
