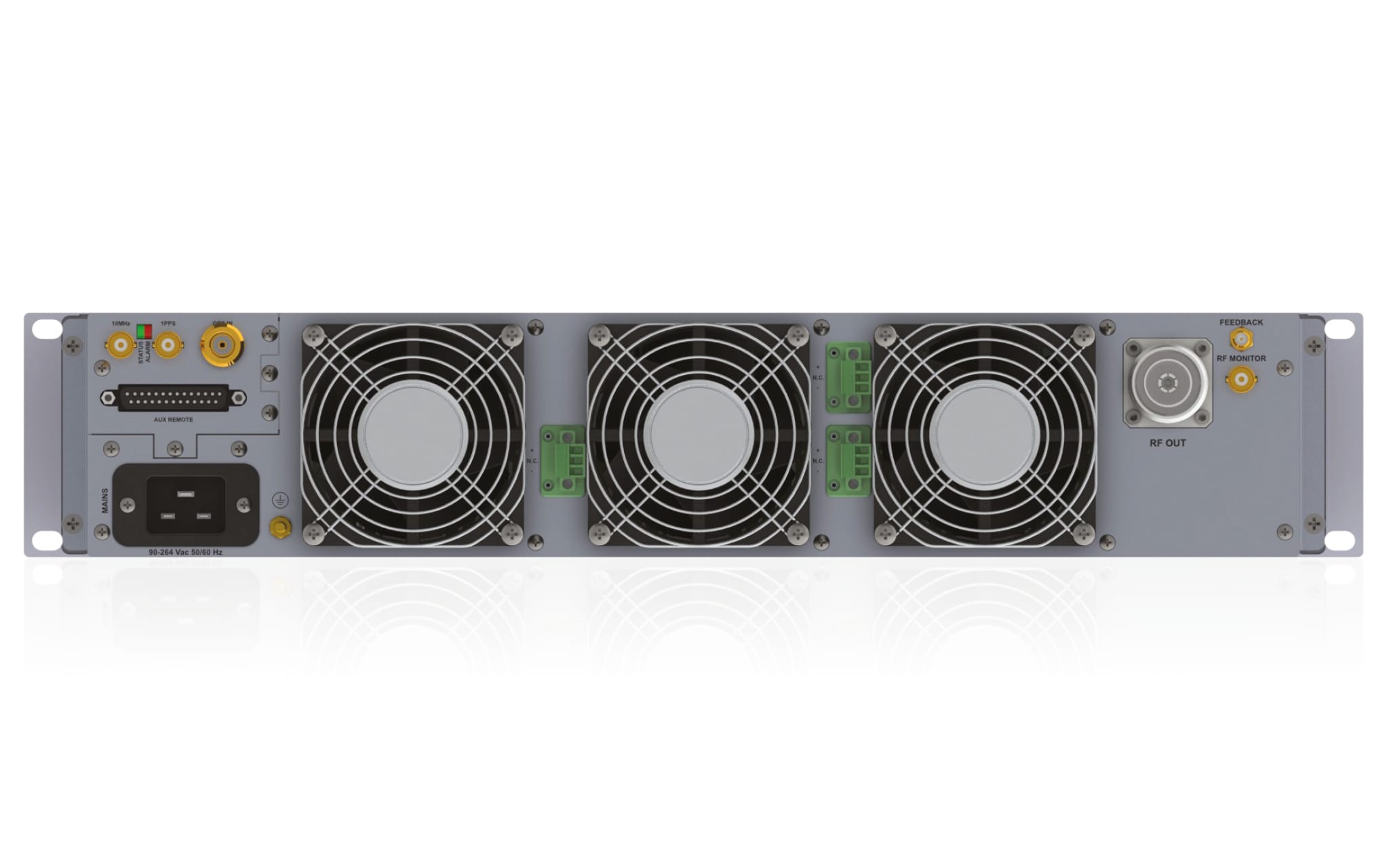

Show Rear
DAB TS Compact
TS Compact is an all-in-one transmitter, fully supporting DVB-T/H, DVB-T2, ISDB-T/Tb, DAB/DAB+/T-DMB, ATSC, PAL and NTSC modulations (dual-cast Analog and Digital is also supported), able to provide an output power up to 750W rms or up to 1200W p.s.
TS Compact comes as an ultra compact chassis available in 2U 19” rack or 3U 19” rack, with adaptive pre-correction circuits natively offered and built in GPS / GLONASS receiver for accurate synchronization and SFN operations.
Different input interfaces can be configured (Satellite Receiver, ASI, ETI, EDI, Gigabit Ethernet or RF), which makes TS Compact the perfect flexible platform to cover the different applications of any Digital network (terrestrial or satellite fed transmitter, re-generative repeater, on channel gap-filler, transposer, etc.).
For the South American ISDB-Tb market, OneCompact combines Satellite Receiver, Re-Multiplexer/Layer Combiner/TS to BTS (188 to 204 byte) converter and Transmitter in a single box.
Main features
- Compact 2U 19” Rack chassis or 3U 19” Rack chassis
- Output Power up to 750W rms in digital or up to 1200 W p.s. in analogue
- High efficiency wideband or broadband amplifier technology both in UHF and VHF bands
- DVB-T/H/T2, ISDB-T/Tb, DAB/DAB+/T-DMB, ATSC, PAL, NTSC, NICAM modulations fully supported
- Embedded Re-Multiplexer/Layer Combiner/TS to BTS (188 to 204 byte) converter for ISDB-Tb
- Adaptive pre-correction circuits
- Powerful echo canceller when TS Compact is used as an on-channel repeater
- Optional internal demodulator with equalizer for regenerative transposers
- Equalized Digital On-Channel Repeater (Spectrum Restorer) configuration available
- On-board high stability GPS / GLONASS receiver with battery
- Flexible input interfaces: 4 x ASI inputs (TS, BTS, T2MI, SMPTE-310M) + Analog input, 2 x ASI inputs and 2 x Gigabit Ethernet, 4 x ETI or 2 x ETI + 2 x EDI inputs, 1 x DVB-S/S2 Satellite Receiver input, 1 x RF input
- SNMP, Web Interface and Touch Screen display
